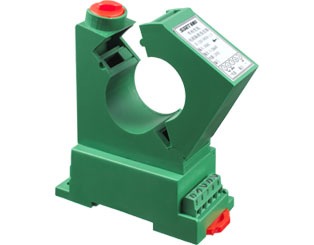

One phase AC (DC) current digital transducer with LED display

This device is a split core 1-element ac current transducer. Use the principle of electromagnetic isolation, adopts opening-closing method, easy to measure the current, isolated output the various types of standard detection and control signals. Completely isolated between input and output, good linear relationship between output signal and input signal. Products with characteristics of high precision, low temperature drift, high isolated voltage, easy for installation. Can widely used in AC current signal real-time monitoring, electricity, railways, industrial monitoring and other fields.

Data Sheet

* Test conditions: auxiliary power: +24 VDC, room temperature: 25 ℃.

* Input range: 0~20AAC~500AAC

* Output: voltage, current, switch, frequency, tracking

* Power supply: 12VDC, 15VDC, 24VDC

* Accuracy: 0.5class

* Load capacity: load ≥ 2KΩ (voltage output Vz), load ≤ 250Ω (current output Iy, Iz)

* Temperature drift: ≤400ppm/℃

* Isolation voltage: ≥2500 V DC

* Response time: ≤300 mS

* Quiescent Current: ≤10mA

* Rated power consumption: ≤0.4W, ≤0.5W

* Output ripple: ≤10mV

* Frequency range: 45~65Hz (up to 5K, please specify when ordering);

* Surge impact immunity:

Power port three-level ± 2KV (L-N/2Ω/integrated wave)

Analog I/O port three-level ±2KV (L-N/40Ω/integrated wave);

* Input overload capacity: 20 times the nominal value of the measurement current (maximum 500A)

(Applying a repetition of five times a second, interval 300S);

* Operating temperature: -10~ 60°C; humidity: ≤95% (no dew);

* Storage temperature: -55 ~+65°C; humidity: ≤95% (no dew).

Part Number Guide

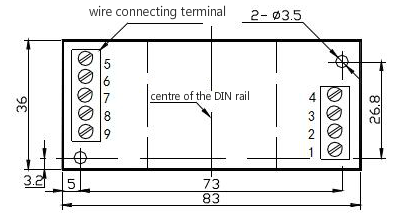

Diagram
